Control Units

Heart and brain of the AcquaLink system

Nav Box

The AcquaLink Nav Box provides a wide range of digital and analog input possibilities.

Nav Box
Engine Box

With a plethora of information made available from various sources, the AcquaLink control units process, calculate and check received signals for discrepancies, demonstrating their intelligent programming with automated system diagnosis and guided fault finding.

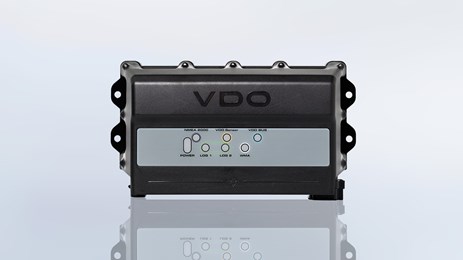

Nav Box

The AcquaLink Nav Box is the heart of the AcquaLink system. It acts as a CPU and signal interface. The Nav Box provides a wide range of digital and analog input possibilities. With a plethora of information made available from various sources, the Nav Box processes, calculates and checks received signals for discrepancies, demonstrating its intelligent programming with automated system diagnosis and guided fault finding. An intuitive user interface (via AcquaLink TFTs) makes for easy programming of vessel parameters, alarms and more.

  • NMEA 2000 certified
  • Molded front cover with LED signal status indication
  • Aluminum base plate
  • Front & rear side protection rating IP67
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C

Connectivity:

  • 3x VDO bus lines with 3x M12 Connectors
  • 1x J1939 CAN bus with 3x M12 Connectors
  • 1x NMEA 2000 bus with 1x M12 Connector
  • 1x VDO Digital Wind Sensor Input (M12 connector)
  • 2x VDO SUMLOG Inputs (2x M12 connectors)
  • AMP Super Seal power input
  • 26 pin AUX input (analog signals, NMEA 0183 and USB interface)
Voltage Article number
8 – 28 V A2C59501928

Engine Box

The AcquaLink Engine Box expands the possibilities of the Nav Box for multi-engine applications or can be used as a stand-alone solution when navigation information is not required.

  • Front & rear side protection rating IP67
  • Molded housing
  • 2x VDO Bus connection with M12 Connector
  • 1x J1939 CAN Bus input with M12 Connector
  • 1x NMEA 2000 certified
  • 2x freely programmable 0 – 5 V
  • 3x 3 – 20 mA
  • 4x  0 to 400 W inputs
  • 1x 400 to 2 kW imput
  • 2x frequency input
  • AMP Superseal power input
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Voltage Article number
8 – 28 V A2C59501978
