Engine Control Instruments

Reliable instrumentation for optimal engine performance

Tachometer

The AcquaLink® Tachometer precisely displays the engine revolution.

Tachometer
Coolant Temperature gauge
Engine Oil Temperature gauge
Pyrometer
Ammeter
Oil Pressure gauge
Transmission Pressure gauge
Turbo Charger gauge
Voltmeter

The AcquaLink engine control instruments monitor reliably every component of the engine such as engine revolution, battery charge and voltage to ensure optimal engine performance.

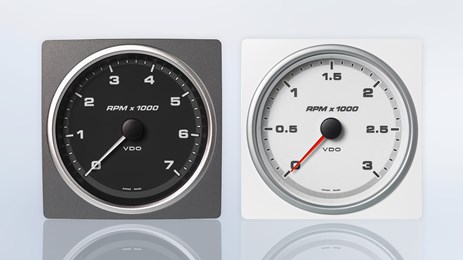

Tachometer

The AcquaLink Tachometer gauge is indicating engine revolution.

  • 2x M12 8 pin VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IP67
  • 110 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range rpm Voltage Color Article number
Ø 110 mm
3000 rpm 8 – 28 V Black / Silver with white numbering A2C59501913
5000 rpm 8 – 28 V Black / Silver with white numbering A2C59501914
7000 rpm 8 – 28 V Black / Silver with white numbering A2C59501915

Coolant Temperature gauge

The AcquaLink coolant temperature gauge displays any sudden rise in coolant temperature, thus helping to prevent serious damage to the engine and the associated expense.

  • AMP Superseal 3 pole connector
  • < 100 mA
  • 240° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range outer/ inner Voltage Color Article number
Ø 52 mm
120° C / 250° F 8 – 28 V Black / Silver with white numbering A2C59501931
250° F / 120° C 8 – 28 V Black / Silver with white numbering A2C59501932

Engine Oil Temperature gauge

The AcquaLink temperature gauge displays any sudden rise in oil temperature.

  • AMP Superseal 3 pole connector
  • < 100 mA
  • 240° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range outer/ inner Voltage Color Article number
Ø 52 mm
150° C / 300° F 8 – 28 V Black / Silver with white numbering A2C59501926
300° F / 150° C 8 – 28 V Black / Silver with white numbering A2C59501927

Pyrometer

The AcquaLink pyrometer indicates the exhaust temperature at the end of the exhaust pipe.

  • AMP Superseal 3 pole connector
  • < 100 mA
  • 240° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range outer/ inner Voltage Color Article number
Ø 52 mm
900° C / 1650° F 8 – 28 V Black / Silver with white numbering A2C59501933
1650° F / 900° C 8 – 28 V Black / Silver with white numbering A2C59501934

Ammeter

The AcquaLink ammeter gauge provides an overview of the entire electrical system. It displays the level of current being drawn or generated.

  • AMP Superseal 3 pole connector
  • < 100 mA
  • 240° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range amp Voltage Color Article number
Ø 52 mm
- 60 / + 60 A 8 – 28 V Black / Silver with white numbering A2C59501942
- 150 / + 150 A 8 – 28 V Black / Silver with white numbering A2C59501943

Oil Pressure gauge

The AcquaLink pressure gauge detects fluctuations in engine oil pressure.

  • AMP Superseal 3 pole connector
  • < 100 mA
  • 240° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range outer/ inner Voltage Color Article number
Ø 52 mm
10 bar / 150 psi 8 – 28 V Black / Silver with white numbering A2C59501935
150 psi / 10 bar 8 – 28 V Black / Silver with white numbering A2C59501936

Transmission Pressure gauge

The AcquaLink pressure gauge detects fluctuations in gear oil pressure.

  • AMP Superseal 3 pole connector
  • < 100 mA
  • 240° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range outer/inner Voltage Color Article number
Ø 52 mm
30 bar / 450 psi 8 – 28 V Black / Silver with white numbering A2C59501937
450 psi / 30 bar 8 – 28 V Black / Silver with white numbering A2C59501938

Turbo Charger gauge

The AcquaLink pressure gauge detects changes in the turbocharger boost.

  • AMP Superseal 3 pole connector
  • < 100 mA
  • 240° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range outer/inner Voltage Color Article number
Ø 52 mm
2 bar / 30 psi 8 – 28 V Black / Silver with white numbering A2C59501944
30 psi / 2 bar 8 – 28 V Black / Silver with white numbering A2C59501945

Voltmeter

The AcquaLink voltmeter displays the status of generator and battery  and their loads on a voltage scale.

  • AMP Superseal 3 pole connector
  • < 100 mA
  • 240° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range Voltage Color Article number
Ø 52 mm
8 – 16 V 8 – 28 V Black / Silver with white numbering A2C59501940
16 – 32 V 8 – 28 V Black / Silver with white numbering A2C59501941
