Navigation Instruments

Precise instrumentation to safely steer your boat

Apparent wind angle gauge

The wind angle gauge displays the direction of the wind.

Apparent wind angle gauge
Apparent wind angle gauge Magnified
Apparent wind speed gauge
Speed over Ground
Speed through Water gauge
Compass
Depth
Rudder Angle
Trim gauge

Reliable navigation instruments ensure secure and accident-free maneuvers even in difficult situations such as passages through shallow waters. The VDO marine navigation instruments show precisely and clearly safety-related data and more.

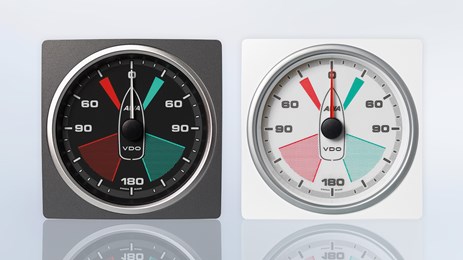

Apparent wind angle gauge

The AcquaLink apparent wind angle gauge displays the direction of the wind. It can be daisy-chained for an easy installation on the VDO Bus.

  • 2x M12 8 pin VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IP67
  • 110 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range Voltage Color Article number
Ø 110 mm
360° 8 – 28 V Black / Silver with white numbering A2C59501900

Apparent wind angle gauge Magnified

The AcquaLink Apparent wind angle gauge magnified gauge displays the direction of the wind relative to the position of the boat. It can be daisy-chained for an easy installation on the VDO Bus.

  • 2x M12 8 pin VDO Bus connectors
  • 360° movement
  • Two M12 8 pin VDO BUS connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IP67
  • 10 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range Voltage Color Article number
Ø 110 mm
360° 8 – 28 V Black / Silver with white numbering A2C59501901

Apparent wind speed gauge

The AcquaLink apparent wind speed gauge displays the wind speed apparent to the movement of the boat. It can be daisy-chained for an easy installation on the VDO Bus.

  • 2x M12 8 pin VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IP67
  • 110 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range Voltage Color Article number
Ø 110 mm
0 – 50 knots 8 – 28 V Black / Silver with white numbering A2C59501902

Speed over Ground

Gauge to indicate Speed over Ground (SOG).

  • 2x M12 8 pin VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IP67
  • 110 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range Voltage Color Article number
Ø 110 mm
12 knots 8 – 28 V Black / Silver with white numbering A2C59501908
35 mph / 60 kmh 8 – 28 V Black / Silver with white numbering A2C59501910
70 mph / 115 kmh 8 – 28 V Black / Silver with white numbering A2C59501909

Speed through Water gauge

This gauge indicates the speed through water.

  • 2x M12 8 pin VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IP67
  • 110 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range Voltage Color Article number
Ø 110 mm
12 knots 8 – 28 V Black / Silver with white numbering A2C59501905
50 knots 8 – 28 V Black / Silver with white numbering A2C59501906
35 mph / 60 kmh 8 – 28 V Black / Silver with white numbering A2C59501907

Compass

The stylish AcquaLink compass indicates the direction of travel - an essential instrument for all boats.

  • 2x M12 8 pin VDO BUS connectors
  • 360° movement
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IP67
  • 110 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range Voltage Color Article number
Ø 110 mm
360° 8 – 28 V Black / Silver with white numbering A2C59501911

Depth gauge

The AcquaLink depth gauge facilitates safe passage through shallow waters.

  • 2x M12 8 pin VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IP67
  • 110 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Range outer/ inner Voltage Color Article number
Ø 110 mm
200 m / 660 feet 8 – 28 V Black / Silver with white numbering A2C59501903
660 feet / 200 m 8 – 28 V Black / Silver with white numbering A2C59501904

Rudder Angle

The AcquaLink rudder angle gauges for wheel-controlled yachts continually display the current rudder position.

For 52 mm:

  • AMP Superseal 3 pole connector
  • < 100 mA
  • 240° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IP67
  • 50 mm installation depth
  • 40° Port to 40° Starboard
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C

For 110 mm:

  • Two M12 8 pin VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IP67
  • 50 mm installation depth
  • 45° Port to 45° Starboard
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Voltage   Color Article number
Ø 52 mm
8 – 28 V   Black / Silver with white numbering A2C59501939
Ø 110 mm
8 – 28 V   Black / Silver with white numbering A2C59501912

Trim gauge

The AcquaLink trim gauge provides information about the position of the engine in relation to the boat‘s stern.

AMP Superseal 3 pole connector

  • < 100 mA
  • 240° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °
Range Voltage Color Article number
Ø 52 mm
up / down 8 – 28 V Black / Silver with white numbering A2C59501925
