TFT Displays

Optimal reliability and readability

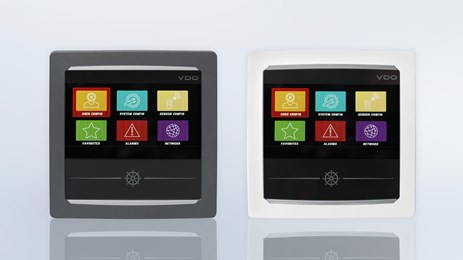

4.3'' TFT Display

The 4.3" TFT display requires the use of a Nav Control unit for data input and operation and provides ideal readability even in direct sunlight.

4.3'' TFT Display
7'' TFT Display
Nav Control

AcquaLink multifunction TFT displays are available in 4.3" and 7" sizes. The full 24 bit/16 mio. color optically bonded displays feature transflective layer technology for unprecedented and unsurpassed readability even in direct sunlight.

4.3'' TFT Display

The 4.3" TFT display requires the use of a Nav Control unit for data input and operation and provides ideal readability even in direct sunlight.









Feature and function
Speed through Water Time of Arrival (Mark) Theoretical Boat Speed Rudder Angle
Distance through Water Time of Arrival (Track) Magnetic Heading Acceleration
Average Speed through Water Local Time Field Strength Yaw (Rotation)
Trip Current Vector True Magnetic Heading Heeling
Depth below Transducer Track Made Good Deviation Roll & Pitch
Depth below Drift Waypoint & Route Selection Auto-Calibration Damping for Values
Depth below Surface Skip Mark / Stop Track Position Engine Speed*
Anchor Watch
(Change of Depth)
Anchor Watch
(Change of Position)
Speed over Ground Fuel Consumption*
Navigation Alarm on/off Alarm Clock Course over Ground Oil Pressure*
Apparent Wind Angle Supply Voltage Time (UTC) Coolant Water Temperature*
Apparent Wind Speed Fuel Tank Number of satellites Oil Temperature*
True Wind Angle Freshwater Tank HDOP Coolant Pressure*
True Magnetic Heading Wastewater Tank Cross Track Error Water in Fuel*
Velocity made Good (VMG) Starter Battery Course to Mark Fuel Range*
Absolute Wind Angle Navigation light control Distance to Mark Barometer
Leeway Angle Voltage Alarms Distance of Track Air Temperature
Race Timer Water Temperature Alarm Time to Go (Mark) Water Temperature
Sail Performance Gas Alarm Time to Go (Track) Water intrusion
*Information received from engine



Screen size Voltage Resolution Article number
4.3" 8 – 28 V 480 x 272 (WQVGA) A2C59501996

7'' TFT Display

The full color display features transflective layer technology for unprecedented and unsurpassed readability even in direct sunlight.

Feature and function
Speed through Water Time of Arrival (Mark) Theoretical Boat Speed Rudder Angle
Distance through Water Time of Arrival (Track) Magnetic Heading Acceleration
Average Speed through Water Local Time Field Strength Yaw (Rotation)
Trip Current Vector True Magnetic Heading Heeling
Depth below Transducer Track Made Good Deviation Roll & Pitch
Depth below Drift Waypoint & Route Selection Auto-Calibration Damping for Values
Depth below Surface Skip Mark / Stop Track Position Engine Speed*
Anchor Watch
(Change of Depth)
Anchor Watch
(Change of Position)
Speed over Ground Fuel Consumption*
Navigation Alarm on/off Alarm Clock Course over Ground Oil Pressure*
Apparent Wind Angle Supply Voltage Time (UTC) Coolant Water Temperature*
Apparent Wind Speed Fuel Tank Number of satellites Oil Temperature*
True Wind Angle Freshwater Tank HDOP Coolant Pressure*
True Magnetic Heading Wastewater Tank Cross Track Error Water in Fuel*
Velocity made Good (VMG) Starter Battery Course to Mark Fuel Range*
Absolute Wind Angle Navigation light control Distance to Mark Barometer
Leeway Angle Voltage Alarms Distance of Track Air Temperature
Race Timer Water Temperature Alarm Time to Go (Mark) Water Temperature
Sail Performance Gas Alarm Time to Go (Track) Water intrusion
*Information received from engine



Screen size Voltage Resolution Article number
7" 8 – 28 V 800 x 480 (WVGA) A2C59501997

Nav Control

The AcquaLink Nav Control unit enables skippers to assume control of AcquaLink TFTs in situations where the touch screen can not be reached or is impractically placed.

Screens can be switched and menus and input variables navigated by using the push/turn knob and six other push buttons. A Nav Control unit can assume control of any display connected to the same VDO Bus with just the push of a button. Even multiple units can be connected to the same Bus without conflicts.

Voltage Article number
8 – 28 V A2C59501982
