Engine Control Instruments

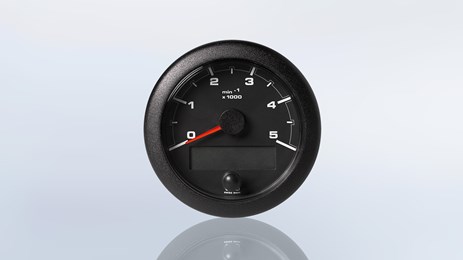

Master tachometer

The VDO Tachometer displays all inportant engine related data and distribute it to up to sixteen 52 mm satellite gauges.

Master tachometer
Satellite coolant temperature gauge
Satellite gearbox temperature gauge
Satellite pyrometer gauge
Satellite oil temperature gauge
Satellite gearbox pressure gauge
Satellite oil pressure gauge
Satellite voltmeter
Satellite boost pressure gauge

The reliable OceanLink instruments for engine control monitor reliably engine revolution, battery charge and voltage, coolant and oil temperature, turbo pressure as well as oil pressure.

Master tachometer

The central instrument automatically presents all the key data – up to 256 standard measurement values ranging from oil pressure and fuel consumption to operating hours – on a generously proportioned digital display. Besides a CAN interface with SAE J1939 data protocol it features two inputs for analogue sensors. The innovative Easy Link data connection renders complicated cabling unnecessary.

The CAN interface also allows a second central instrument to be hooked up for positioning on the flybridge, for example. Satellite instruments for further dynamic measurement values receive updates from the central instrument every 20 ms.

  • Version: translucent backlighting
  • Housing: plastic (flame-retardant) according to UL 94-V0
  • Bezel: plastic, colored
  • Lens: plastic, double lens, antireflection
  • Dial: black with white graphics or white with black graphics
  • Illumination: red LED, 8 dimmer steps
  • Pointer: translucent backlighting, black cap, white pointer
  • Display: 132 x 33 dots
  • Connections: DELPHI connector, GT 150 series
  • Installation: housing nut, nut jam height 0-17 mm
  • Indication area: 3,000, 4,000 and 5,000 rpm
  • Nominal voltage: 12/24 volts
  • Nominal position: 0-90° angle, according to VDON 2.700.1
  • Operating temperature: -20 °C to +70 °C (at nominal voltage)
  • Storage temperature: -30 °C to +85 °C
  • EMC: DIN EN61000-6-1/2/3, EN61000-4-3, EMC Directive 2004/108/EC
  • Protection class: IP65, mounted from the front according to IEC 529
  • Current consumption: 120 mA without, 140 mA with illumination
  • Power supply 10-30 Volts
Range Type Description
Ø 85 mm
0–3,000 min-1 Master Tachometer
0–4,000 min-1 Master Tachometer
0–5,000 min-1 Master Tachometer

Satellite coolant temperature gauge

The OceanLink coolant temperature satellite gauge displays any sudden rise in coolant temperature, thus helping to prevent serious damage to the engine and the associated expense.

  • Version: translucent backlighting
  • Housing: plastic (flame-retardant) according to UL 94-V0
  • Bezel: plastic, colored, clipable
  • Lens: plastic, double lens, antireflection
  • Dial: black with white graphics or white with black graphics
  • Illumination: red LED, 8 dimmer steps, adjustable via master
  • Pointer: translucent backlighting, black cap, white pointer
  • Connections: AMP connector 282105-1, super seal 1.5 series
  • Installation: mounted from the front, housing nut, nut jam height 0-12 mm, studs 12-25 mm flush mount: for 3 mm panel thickness with mounting angle, screws and studs on panel gasket Æ51.5 / Æ60x2
  • Indication area: 270° (depending on satellite functionality)
  • Operating temperature: -20 °C to +70 °C (at nominal voltage)
  • Storage temperature: -30 °C to +85 °C
  • EMC: DIN EN61000-6-1/2/3, EN61000-4-3, EMC Directive 2004/108/EC
  • Protection class: IP65, mounted from the front according to IEC 529
  • Max. no. of satellites: max. 20 gauges and 20 m cable length connected to master
  • Current consumption: <70 mA with illumination
  • Data transfer: Easy Link bus uni-directional from master to satellite
Range Type Description
Ø 52 mm
40–120 °C/105–250 °F Satellite Engine coolant temp gauge
105–250 °F Satellite Engine coolant temp gauge
40–120 °C Satellite Engine coolant temp gauge

Satellite gearbox temperature gauge

The OceanLink gearbox temperature gauge precisely indicates the gearbox oil temperature.

  • Version: translucent backlighting
  • Housing: plastic (flame-retardant) according to UL 94-V0
  • Bezel: plastic, colored, clipable
  • Lens: plastic, double lens, antireflection
  • Dial: black with white graphics
  • Illumination: red LED, 8 dimmer steps, adjustable via master
  • Pointer: translucent backlighting, black cap, white pointer
  • Connections: AMP connector 282105-1, super seal 1.5 series
  • Installation: mounted from the front, housing nut, nut jam height 0-12 mm, studs 12-25 mm flush mount: for 3 mm panel thickness with mounting angle, screws and studs on panel gasket Æ51.5 / Æ60x2
  • Indication area: 270° (depending on satellite functionality)
  • Operating temperature: -20 °C to +70 °C (at nominal voltage)
  • Storage temperature: -30 °C to +85 °C
  • EMC: DIN EN61000-6-1/2/3, EN61000-4-3, EMC Directive 2004/108/EC
  • Protection class: IP65, mounted from the front according to IEC 529
  • Max. no. of satellites: max. 20 gauges and 20 m cable length connected to master
  • Current consumption: <70 mA with illumination
  • Data transfer: Easy Link bus uni-directional from master to satellite
Range Type Description
Ø 52 mm
50° - 150°C Satellite Gearbox oil temp gauge

Satellite pyrometer gauge

The OceanLink pyrometer satellite gauge indicates the exhaust temperature at the end of the exhaust pipe.

  • Version: translucent backlighting
  • Housing: plastic (flame-retardant) according to UL 94-V0
  • Bezel: plastic, colored, clipable
  • Lens: plastic, double lens, antireflection
  • Dial: black with white graphics or white with black graphics
  • Illumination: red LED, 8 dimmer steps, adjustable via master
  • Pointer: translucent backlighting, black cap, white pointer
  • Connections: AMP connector 282105-1, super seal 1.5 series
  • Installation: mounted from the front, housing nut, nut jam height 0-12 mm, studs 12-25 mm flush mount: for 3 mm panel thickness with mounting angle, screws and studs on panel gasket Æ51.5 / Æ60x2
  • Indication area: 270° (depending on satellite functionality)
  • Operating temperature: -20 °C to +70 °C (at nominal voltage)
  • Storage temperature: -30 °C to +85 °C
  • EMC: DIN EN61000-6-1/2/3, EN61000-4-3, EMC Directive 2004/108/EC
  • Protection class: IP65, mounted from the front according to IEC 529
  • Max. no. of satellites: max. 20 gauges and 20 m cable length connected to master
  • Current consumption: <70 mA with illuminationData transfer: Easy Link bus uni-directional from master to satellite
Range Type Description
Ø 52 mm
100° - 900°C Satellite Exhaust gas temp gauge, black
200° -1,700 °F Satellite Exhaust gas temp gauge, white

Satellite oil temperature gauge

The OceanLink oil temperature satellite gauge displays any sudden rise in oil temperature, thus helping to prevent serious damage to the engine and the associated expense.

  • Version: translucent backlighting
  • Housing: plastic (flame-retardant) according to UL 94-V0
  • Bezel: plastic, colored, clipable
  • Lens: plastic, double lens, antireflection
  • Dial: black with white graphics
  • Illumination: red LED, 8 dimmer steps, adjustable via master
  • Pointer: translucent backlighting, black cap, white pointer
  • Connections: AMP connector 282105-1, super seal 1.5 series
  • Installation: mounted from the front, housing nut, nut jam height 0-12 mm, studs 12-25 mm flush mount: for 3 mm panel thickness with mounting angle, screws and studs on panel gasket Æ51.5 / Æ60x2
  • Indication area: 270° (depending on satellite functionality)
  • Operating temperature: -20 °C to +70 °C (at nominal voltage)
  • Storage temperature: -30 °C to +85 °C
  • EMC: DIN EN61000-6-1/2/3, EN61000-4-3, EMC Directive 2004/108/EC
  • Protection class: IP65, mounted from the front according to IEC 529
  • Max. no. of satellites: max. 20 gauges and 20 m cable length connected to master
  • Current consumption: <70 mA with illuminationData transfer: Easy Link bus uni-directional from master to satellite
Range Type Description
Ø 52 mm
50–150 °C Satellite Engine oil temp gauge

Satellite gearbox pressure gauge

This OceanLink satellite oil pressure gauge detects fluctuations in gearbox oil pressure.

  • Version: translucent backlighting
  • Housing: plastic (flame-retardant) according to UL 94-V0
  • Bezel: plastic, colored, clipable
  • Lens: plastic, double lens, antireflection
  • Dial: black with white graphics or white with black graphics
  • Illumination: red LED, 8 dimmer steps, adjustable via master
  • Pointer: translucent backlighting, black cap, white pointer
  • Connections: AMP connector 282105-1, super seal 1.5 series
  • Installation: mounted from the front, housing nut, nut jam height 0-12 mm, studs 12-25 mm flush mount: for 3 mm panel thickness with mounting angle, screws and studs on panel gasket Æ51.5 / Æ60x2
  • Indication area: 270° (depending on satellite functionality)
  • Operating temperature: -20 °C to +70 °C (at nominal voltage)
  • Storage temperature: -30 °C to +85 °C
  • EMC: DIN EN61000-6-1/2/3, EN61000-4-3, EMC Directive 2004/108/EC
  • Protection class: IP65, mounted from the front according to IEC 529
  • Max. no. of satellites: max. 20 gauges and 20 m cable length connected to master
  • Current consumption: <70 mA with illumination
  • Data transfer: Easy Link bus uni-directional from master to satellite
Range Type Description
Ø 52 mm
0-25 bar Satellite Gearbox oil pressure gauge, black
0-25 bar / 0-360 psi Satellite Gearbox oil pressure gauge, white

Satellite oil pressure gauge

This OceanLink satellite oil pressure gauge detects fluctuations in engine oil pressure.

  • Version: translucent backlighting
  • Housing: plastic (flame-retardant) according to UL 94-V0
  • Bezel: plastic, colored, clipable
  • Lens: plastic, double lens, antireflection
  • Dial: black with white graphics or white with black graphics
  • Illumination: red LED, 8 dimmer steps, adjustable via master
  • Pointer: translucent backlighting, black cap, white pointer
  • Connections: AMP connector 282105-1, super seal 1.5 series
  • Installation: mounted from the front, housing nut, nut jam height 0-12 mm, studs 12-25 mm flush mount: for 3 mm panel thickness with mounting angle, screws and studs on panel gasket Æ51.5 / Æ60x2
  • Indication area: 270° (depending on satellite functionality)
  • Operating temperature: -20 °C to +70 °C (at nominal voltage)
  • Storage temperature: -30 °C to +85 °C
  • EMC: DIN EN61000-6-1/2/3, EN61000-4-3, EMC Directive 2004/108/EC
  • Protection class: IP65, mounted from the front according to IEC 529
  • Max. no. of satellites: max. 20 gauges and 20 m cable length connected to master
  • Current consumption: <70 mA with illumination
  • Data transfer: Easy Link bus uni-directional from master to satellite
Range Type Description
Ø 52 mm
0-10 bar Satellite Engine oil pressure gauge, black
0-10 bar / 0-145 psi Satellite Engine oil pressure gauge, white
0-145 psi Satellite Engine oil pressure gauge, black

Satellite voltmeter

The OceanLink oil temperature satellite gauge displays any sudden rise in oil temperature, thus helping to prevent serious damage to the engine and the associated expense.

  • Version: translucent backlighting
  • Housing: plastic (flame-retardant) according to UL 94-V0
  • Bezel: plastic, colored, clipable
  • Lens: plastic, double lens, antireflection
  • Dial: black with white graphics or white with black graphics
  • Illumination: red LED, 8 dimmer steps, adjustable via master
  • Pointer: translucent backlighting, black cap, white pointer
  • Connections: AMP connector 282105-1, super seal 1.5 series
  • Installation: mounted from the front, housing nut, nut jam height 0-12 mm, studs 12-25 mm flush mount: for 3 mm panel thickness with mounting angle, screws and studs on panel gasket Æ51.5 / Æ60x2
  • Indication area: 270° (depending on satellite functionality)
  • Operating temperature: -20 °C to +70 °C (at nominal voltage)
  • Storage temperature: -30 °C to +85 °C
  • EMC: DIN EN61000-6-1/2/3, EN61000-4-3, EMC Directive 2004/108/EC
  • Protection class: IP65, mounted from the front according to IEC 529
  • Max. no. of satellites: max. 20 gauges and 20 m cable length connected to master
  • Current consumption: <70 mA with illumination
  • Data transfer: Easy Link bus uni-directional from master to satellite
Range Type Description
Ø 52 mm
8-16 volts Satellite Voltmeter, black or white
18-32 volts Satellite Voltmeter, black or white

Satellite turbo pressure gauge

This OceanLink satellite pressure gauge detects changes in the turbocharger boost.

  • Version: translucent backlighting
  • Housing: plastic (flame-retardant) according to UL 94-V0
  • Bezel: plastic, colored, clipable
  • Lens: plastic, double lens, antireflection
  • Dial: black with white graphics
  • Illumination: red LED, 8 dimmer steps, adjustable via master
  • Pointer: translucent backlighting, black cap, white pointer
  • Connections: AMP connector 282105-1, super seal 1.5 series
  • Installation: mounted from the front, housing nut, nut jam height 0-12 mm, studs 12-25 mm flush mount: for 3 mm panel thickness with mounting angle, screws and studs on panel gasket Æ51.5 / Æ60x2
  • Indication area: 270° (depending on satellite functionality)
  • Operating temperature: -20 °C to +70 °C (at nominal voltage)
  • Storage temperature: -30 °C to +85 °C
  • EMC: DIN EN61000-6-1/2/3, EN61000-4-3, EMC Directive 2004/108/EC
  • Protection class: IP65, mounted from the front according to IEC 529
  • Max. no. of satellites: max. 20 gauges and 20 m cable length connected to master
  • Current consumption: <70 mA with illumination
  • Data transfer: Easy Link bus uni-directional from master to satellite
Range Type Description
Ø 52 mm
0-3 bar Satellite Boost pressure gauge

Dealer Search / Contact us

Locate the right contact, dealer or service partner worldwide

Contact

Downloads

Download brochures, data sheets, user manuals or catalogues:

Tolling Belgium Fix Installation

Truck Tolling in Belgium is coming 1st of April 2016. Be prepared now and buy a fix installation!

Go to page

© Continental Automotive Trading UK Ltd. 2016

VDO - A Trademark of the Continental Corporation
