Level Instruments

Precise level instrumentation

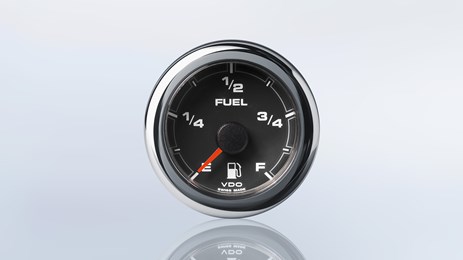

Satellite fuel level gauge

The OceanLink fuel level satellite gauge indicates precise values of the level of fuel in the tank.

Satellite fuel level gauge

Overview

The OceanLink Level instruments provide precise information about the level of fuel.

Satellite fuel level gauge

The OceanLink fuel level satellite gauge indicates precise values of the level of fuel in the tank.

  • Version: translucent backlighting
  • Housing: plastic (flame-retardant) according to UL 94-V0
  • Bezel: plastic, colored, clipable
  • Lens: plastic, double lens, antireflection
  • Dial: black with white graphics or white with black graphics
  • Illumination: red LED, 8 dimmer steps, adjustable via master
  • Pointer: translucent backlighting, black cap, white pointer
  • Connections: AMP connector 282105-1, super seal 1.5 series
  • Installation: mounted from the front, housing nut, nut jam height 0-12 mm, studs 12-25 mm flush mount: for 3 mm panel thickness with mounting angle, screws and studs on panel gasket Æ51.5 / Æ60x2
  • Indication area: 270° (depending on satellite functionality)
  • Operating temperature: -20 °C to +70 °C (at nominal voltage)
  • Storage temperature: -30 °C to +85 °C
  • EMC: DIN EN61000-6-1/2/3, EN61000-4-3, EMC Directive 2004/108/EC
  • Protection class: IP65, mounted from the front according to IEC 529
  • Max. no. of satellites: max. 20 gauges and 20 m cable length connected to master
  • Current consumption: <70 mA with illumination
  • Data transfer: Easy Link bus uni-directional from master to satellite
Range Type Description
Ø 52 mm
0-4/4 Satellite Fuel level gauge, black or white
