Marine sensors

Flexible and reliable sensors for Marine applications.

The multifunctional AcquaLink® Nav Sensor is the gem of all sensors.

The multifunctional AcquaLink® Nav Sensor is the gem of all sensors.

The multifunctional AcquaLink® Nav Sensor is the gem of all sensors.
The rotor records the relative wind speed which in turn is diplayed on the wind speed gauge.
The Sumlog® Transducer is required to measure boat speed through water.
This depth sensor is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data.
Sensor measuring the rudder angle.
Capacitive fresh water sensor measuring the level of fresh water in the tank.
Resistive fresh water sensor measuring the level of fresh water in the tank.
Sensor measuring the level of waste water in the tank.
Marine fuel level sensor for fuel level gauge 90-4 with warning contact.
Marine fuel level sensor for fuel level gauge 0-90 with warning contact.
Marine fuel level sensor for fuel level gauge 240-33.5 with warning contact.
Marine fuel level sensor for fuel level gauge 3-180 with warning contact.
The active pressure sensors with voltage output are used to measure pressure of gaseous and liquid media in a variety of applications at various Locations.
Engine oil pressure sensor to measure engine oil pressure up to 5 bar.
Engine oil pressure sensor to measure engine oil pressure up to 10 bar.
Transmission oil pressure sensor to measure transmission oil pressure up to 25 bar.
Transmission oil pressure sensor to measure transmission oil pressure.
Turbo pressure sensor to measure turbo pressure.
Sensor measuring speed and engine revolution.
The temperature sensor is based on NTC-Technology (Negative Temperature Coefficient).
Sensor measuring the engine oil temperature.
Sensor measuring the coolant temperature.
Pyrometer sensor for temperature measurement.
Reliable marine ammeter sensor.

Sensors for electronically controlled safety functions are the eyes, ears and the antenna of a modern-day high-tech vehicle. Nothing escapes them – neither the smallest temperature deviation inside cooling systems, nor the monitoring of engine and gear oil temperature. Intelligent safety systems are inconceivable without them.

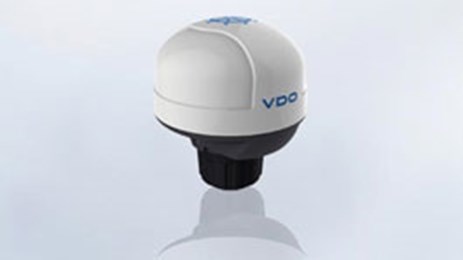

Nav sensor

The multifunctional AcquaLink Nav Sensor is the gem of all sensors. The inertial sensor complements the inbuilt satellite receiver module (GPS, Bei Dou, Glonass, Galileo) to provide accurate readings of the speed of travel as well as the pitch & roll (up and down) and YAW (sideways) motion of the boat.

Compass readings can be displayed electronically thanks to the fluxgate, which also facilitate course corrections in electronic autopilots. The barometer and air temperature sensors are early indicators of forthcoming weather conditions.

  • M12 5 pin connector
  • NMEA 2000® certified
  • GPS Module: Position, time, boats vector, signal quality, satellites
  • Flux compass: + / -40° tilt angle, < 2° accuracy, alarm (rapid field strength change, tilt angle overrun, undervoltage condition)
  • Barometer: Air pressure, air temperature inside the sensor
  • Air temperature: -20 / +65°C
  • Inertial sensor: Resolution 1°/s
  • YAW-range 100°/s,
  • linearity + / -3°/s
  • Acceleration-range 50 m/s2, linearity + / -1 m/s2
  • Calculated heeling, pitch & roll - range + / -50°
  • Operating temperature range -20 °C / +70 °C
  • Storage temperature range -30 °C / +80 °C
Voltage Article number
8 – 28 V A2C59501981

Wind sensor

The wind vane turns in the direction of the wind and steers the wind direction gauge. The rotor records the relative wind speed which in turn is diplayed on the wind speed gauge.

  • short arm: M12 5pin NMEA 2000® certified
  • long arm: M12 5 pin NMEA 2000® certified
Voltage Article number
8 – 28 V A2C59501983
8 – 28 V A2C59501984

Sumlog® Transducer

The Sumlog® Transducer is required to measure boat speed through water. The Sumlog® includes two paddle wheels which can be exchanged to match the speed range of the boat, thereby supporting speeds from 0 to 12 or up to 50 knots respective of the installed paddle wheel.

The Nav Box supports up to two Sumlogs® which can be directly connected to the dedicated Sumlog® ports using a 4 pin M12 connector extension cable.

  • 4 pin M12 connector < 100 mA
  • 8 – 28 V
Voltage Article number
8 – 28 V A2C59501986

Depth sensor

This depth sensor is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA 2000® display. It operates at a frequency of 235 kHz. The broadband ceramic delivers depth readings to 183 m (600’), as well as accurate shallow-water readings in as little as 500 mm (1.6’).

The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible device or display. Because the ceramic is tilted inside the housing, the transducer beam is oriented straight down, resulting in strong bottom echo returns and accurate depth readings. The retractable housing with a self-closing valve reduces water flow into the vessel when the transducer is removed for cleaning.

  • 20° tilt angle
  • NMEA 2000®
  • Suppy voltage 9 – 16 V
  • 60 watt
  • 235 kHz
  • Temperature sensor for water -10 / +40 °C
  • Pigtail cable
  • Plastic housing
  • retractable housing
  • Water valve
Material Article number
Plastic housing A2C59501985

Rudder angle sensor

Sensor measuring the rudder angle.



Single station
Voltage Resistance ohm Article number
12 / 24 V 10 – 180 Ω 440-102-001-001D



Dual station (fly bridge)
Voltage Resistance ohm Article number
12 / 24 V 5 – 90 Ω 440-102-002-001D

Capacitive fresh water sensor

Capacitive fresh water sensor measuring the level of fresh water in the tank.

Voltage Signal Range Length Article number
12 / 24 V 40 – 20 mA 80 – 600 mm N02-240-402
12 / 24 V 40 – 20 mA 600 – 1200 mm N02-240-404
12 / 24 V 40 – 20 mA 1200 – 1500 mm N02-240-406

Resistive fresh water sensor

Resistive fresh water sensor measuring the level of fresh water in the tank.

Voltage Signal Range Length Article number
12 / 24 V 3 – 180 Ω 200 – 600 mm 226-828-001-001K

Waste water capacitive sensor

Sensor measuring the level of waste water in the tank.

Voltage Signal Range Length Article number
12 / 24 V 40 – 20 mA 200 – 600 mm N02-240-902
12 / 24 V 40 – 20 mA 600 – 1200 mm N02-240-904
12 / 24 V 40 – 20 mA 1200 – 1500 mm N02-240-906

Fuel gauge 90-4 sensor

Marine fuel level sensor for fuel level gauge 90-4 with warning contact.

Signal Range empty/full Length Article number
69.0 - 4.5 Ω 150 mm 224-011-000-150G
74.0 - 4.5 Ω 160 mm 224-011-000-160G
79.5 - 4.5 Ω 170 mm 224-011-000-170G
64.0 - 3.0 Ω 180 mm 224-011-000-180G
68.0 - 3.0 Ω 190 mm 224-011-000-190G
68.0 - 2.5 Ω 200 mm 224-011-000-200G
76.0 - 3.0 Ω 210 mm 224-011-000-210G
80.0 - 3.0 Ω 220 mm 224-011-000-220G
84.0 - 2.5 Ω 230 mm 224-011-000-230G
65.5 - 2.5 Ω 240 mm 224-011-000-240G
72.0 - 2.5 Ω 250 mm 224-011-000-250G
72.0 - 2.5 Ω 260 mm 224-011-000-260G
74.5 - 2.5 Ω 270 mm 224-011-000-270G
75.5 - 2.5 Ω 280 mm 224-011-000-280G
82.8 - 2.5 Ω 300 mm 224-011-000-300G
84.0 - 2.5 Ω 310 mm 224-011-000-310G
72.0 - 2.5 Ω 330 mm 224-011-000-330G
74.0 - 2.5 Ω 340 mm 224-011-000-340G
79.6 - 2.5 Ω 350 mm 224-011-000-350G
71.0 - 2.5 Ω 370 mm 224-011-000-370G
73.0 - 2.5 Ω 380 mm 224-011-000-380G
75.0 - 2.5 Ω 390 mm 224-011-000-390G
74.9 . 2.5 Ω 400 mm 224-011-000-400G
84.3 - 2.5 Ω 450 mm 224-011-000-450G
75.4 - 2.5 Ω 500 mm 224-011-000-500G
77.6 - 2.5 Ω 550 mm 224-011-000-550G
85.3 - 2.5 Ω 600 mm 224-011-000-600G
82.2 - 2.5 Ω 650 mm 224-011-000-650G
81.6 - 2.0 Ω 700 mm 224-011-000-700G
82.0 - 2.0 Ω 750 mm 224-011-000-750G
68.5 - 2.0 Ω 800 mm 224-011-000-800G

Fuel gauge 0-90 sensor

Marine fuel level sensor for fuel level gauge 0-90 with warning contact.

Item specifics Signal range empty/full Length Article number
Fuel level sensor with warning contact
Sensor type: Adjustable lever ALAS I
2 – 90 Ω 145 – 400 mm A2C59510167
Fuel level sensor without warning contact
Sensor type: Adjustable lever ALAS I
2 – 90 Ω 145 – 400 mm A2C59510173

Fuel gauge 240-33.5 sensor

Marine fuel level sensor for fuel level gauge 240-33.5 with warning contact.

Item specifications Signal Range empty/full Length Article number
Fuel level sensor with warning contact
Sensor type: Adjustable lever ALAS I
240–33.5 Ω 145–400 mm A2C59510166
Fuel level sensor without warning contact
Sensor type:Adjustable lever ALAS I
240–33.5 Ω 145–400 mm A2C59510

Fuel gauge 3-180 sensor

Marine fuel level sensor for fuel level gauge 3-180 with warning contact.

Item specifics Signal range empty/full Length Article number
Fuel level sensor
Sensor type: Adjustable lever
3 – 180 Ω 150 – 600 mm 226-801-015-001G
Fuel level sensor
Sensor type: Adjustable lever for dual units (flying bridge)
3 – 180 Ω 150 – 600 mm N02-240-106 *
  3 – 180 Ω 145 – 400 mm A2C59510165
  3 – 180 Ω 145 – 400 mm A2C59510171

* for dual units (flying bridge)

Electronic pressure sensor

The active pressure sensors with voltage output are used to measure pressure of gaseous and liquid media in a variety of applications at various locations.

The pressure sensor unit is based on a stainless steel sensing element and converts fluctuations of measuring medium into a pressure-proportional electrical output signal (0.5 – 4.5 V)

Range bar Voltage Thread Article number
10 bar 8 – 32 V M12 x 1.5 365-100-010-121C
16 bar 8 – 32 V M12 x 1.5 365-100-016-121C
30 bar 8 – 32 V M12 x 1.5 365-100-030-121C

Engine oil pressure sensor 5 bar

Engine oil pressure sensor to measure engine oil pressure up to 5 bar.

Single-pole, common ground

Range Voltage L1 L2 Thread Article number
5 bar 6 – 24 V 19.5 mm 11 mm M10 x 1 tapered, short 360-081-029-001C
5 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-029-004C
5 bar 6 – 24 V 23.8 mm 15.3 mm 1/4" – 18 NPTF 360-081-029-008C
5 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-029-026C
5 bar 6 – 24 V 20.5 mm 12 mm M12 x 1.5 360-081-029-085C
5 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-029-041C
5 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-029-059C



Dual-pole, insulated return

Range Voltage L1 L2 Thread Article number
5 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-032-001C
5 bar 6 – 24 V 19.5 mm 11 mm M10 x 1 tapered, short 360-081-032-002C
5 bar 6 – 24 V 20.8 mm 12 mm M18 x 1.5 360-081-032-013C
5 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-032-007C
5 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-032-059C*
5 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-032-060C*

*without hexagonal nut



With warning contact, common ground
Range Voltage L1 L2 Thread Article number
0.7 ± 0.15 bar 6 – 24 V 19.5 mm 11 mm M10 x 1
tapered, short
360-081-030-004C
0.5 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M12 x 1.5 360-081-030-008C
1.4 ± 0.3 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-030-010C
1.2 ± 0.15 bar 6 – 24 V 19.5 mm 11 mm M10 x 1
tapered, short
360-081-030-018C
0.5 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-030-028C
0.5 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-030-036C
0.5 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-030-097C
0.4 +0.2 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-030-085C
0.5 +0.2 -0.1 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-030-086C
0.4 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-030-071C
0.5 +0.15 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-030-157C
1.4 ± 0.3 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-030-119C
0.25 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-034-002C
0.4 ± 0.2 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-062-002A
1.0 ± 0.2 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-062-004A



With warning contact, 3 connections
Range Voltage L1 L2 Thread Article number
0.8 ± 0.15 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 Dryseal NPTF 360-081-039-002C
0.25 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-064-001C
0.25 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-064-003C

Engine oil pressure sensor 10 bar

Engine oil pressure sensor to measure engine oil pressure up to 10 bar.

Single-pole, common ground
Range Voltage L1 L2 Thread Article number
10 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-029-012C
10 bar 6 – 24 V 20.5 mm 12 mm M12 x 1.5 360-081-029-013C
10 bar 6 – 24 V 23.8 mm 15.3 mm 1/4" – 18 NPTF 360-081-029-020C
10 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-029-033C
10 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-029-042C
10 bar 6 – 24 V 19.5 mm 11 mm R 1/8 DIN 2999 360-081-029-062C
10 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 362-081-003-002K*

* for dual units (fly bridge)



Dual-pole, insulated return
Range Voltage L1 L2 Thread Article number
10 bar 6 – 24 V 19.5 mm 11 mm M10 x 1 tapered, short 360-081-032-003C
10 bar 6 – 24 V 20.5 mm 12 mm M12 x 1.5 360-081-032-004C
10 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-032-006C
10 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-032-014C
10 bar 6 – 24 V 20.5 mm 12 mm M12 x 1.5 360-081-032-053C
10 bar 6 – 24 V 40 mm 10 mm R1/8 DIN 2999 360-081-032-057C
10 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 362-081-001-002C*

* for dual units (fly bridge)



With warning contact, common ground
Range Voltage L1 L2 Thread Article number
0.5 ± 0.15 bar 6 – 24 V 19.5 mm 11 mm M10 x 1 tapered, short 360-081-030-009C
0.8 ± 0.3 bar 6 – 24 V 19.5 mm 12 mm 1/8" – 27 NPTF 360-081-030-015C
0.9 ± 0.15 bar 6 – 24 V 19.5 mm 11 mm M10 x 1 tapered, short 360-081-030-017C
1.5 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M12 x 1.5 360-081-030-019C
0.5 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M12 x 1.5 360-081-030-022C
0.7 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-030-030C
0.5 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-030-032C
0.75 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-030-037C
2.0 ± 0.3 bar 6 – 24 V 19.5 mm 11 mm M10 x 1 tapered, short 360-081-030-041C
0.5 +0.2 -0.1 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-030-052C
0.5 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-030-074C
0.75 ± 0.15 bar 6 – 24 V 19.5 mm 11 mm M10 x 1 tapered, short 360-081-030-039C
1.0 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-030-063C
0.5 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-030-070C
4.0 +0.5 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-030-100C
5.5 ± 0.3 bar 6 – 24 V 20.5 mm 12 mm M16 x 1.5 360-081-030-107C
0.75 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-030-122C
5.2 ± 0.5 bar 6 – 24 V 19.5 mm 11 mm M10 x 1 tapered, short 360-081-030-152C
1.25 +0.3 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-030-138C
1.35 ± 0.15 bar 6 – 24 V 18.5 mm 10 mm M10 x 1 360-081-030-112C
0.7 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-061-002C
5.0 ± 0.3 bar 6 – 24 V 21.5 mm 13 mm M12 x 1.5 tapered, short 360-081-061-006C
5.5 ± 0.3 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-062-003C
3.0 ± 0.3 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-062-005A



With warning contact, 3 connections
Range Voltage L1 L2 Thread Article number
1.0 ± 0.15 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-039-007C
0.8 ± 0.15 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27
Dryseal NPTF

360-081-039-003C
5.2 ± 0.3 bar 6 – 24 V 20.5 mm 12 mm M12 x 1.5 360-081-063-001C 1)
0.6 +0.3 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-064-004C 2)

1) 1 = Sensor; 2 = Warning contact; 3 = Ground
2) 1 = Sensor; 2 = Warning contact; 3 = Anti-twist guard

Transmission oil pressure sensor 25 bar

Transmission oil pressure sensor to measure transmission oil pressure up to 25 bar.

Single-pole, common ground
Range Voltage L1 L2 Thread Article number
25 bar 6 – 24 V 19.5 mm 11 mm M10 x 1 tapered, short 360-081-037-008C
25 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 362-081-004-001C*
25 bar 6 – 24 V 20.8 mm 11 mm M18 x 1.5 360-081-037-003C
25 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-037-010C
25 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-037-017C
25 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-037-018C

* for dual units (fly bridge)



Dual-pole, insulated return
Range Voltage L1 L2 Thread Article number
25 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-038-005C
25 bar 6 – 24 V 23.8 mm 15.3 mm 3/8" – 18 Dryseal
NPTF
360-081-038-002C
25 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 362-081-002-001K*
25 bar 6 – 24 V 20.5 mm 12 mm M14 x 1.5 360-081-038-001C
25 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-038-003C

* for dual units (fly bridge)



With warning contact, common ground
Warning contact Voltage L1 L2 Thread Article number
5.5 +1.0 -0.5 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-053-003C

Transmission oil pressure sensor 400-435 psi

Transmission oil pressure sensor to measure transmission oil pressure.

Dual-pole, insulated return
Range Voltage L1 L2 Thread Article number
30 bar 6 – 24 V 19.5 mm 11 mm 1/8” – 27 NPTF 362-081-002-003C*
30 bar 6 – 24 V 19.5 mm 11 mm 1/8” – 27 NPTF 362-081-002-004C*

* for dual units (fly bridge)

Turbo pressure sensor

Turbo pressure sensor to measure turbo pressure.

Dual-pole, insulated return
Range Voltage L1 L2 Thread Article number
2 bar 6 – 24 V 20.5 mm 12 mm M18 x 1.5 360-081-032-058C
2 bar 6 – 24 V 20.5 mm 12 mm M12 x 1.5 360-081-032-011C
2 bar 6 – 24 V 19.5 mm 11 mm 1/8" – 27 NPTF 360-081-032-025C

Speed and revolution sensor

Sensor measuring speed and engine revolution.

Inductive sensor 2-pole, insulated return (independent voltage)
L1 L2 L3 L4 Thread Article number
18 mm 35 mm 36.15 – 35.80 mm 71.5 mm M18 x 1.5 340-804-005-001C
15 mm 35 mm 36.1 ± 0.1 mm 71.5 mm M18 x 1.5 340-804-005-007C
18 mm 71.4 mm 72.63 – 72.20 mm 107.9 mm M18 x 1.5 340-804-005-013A
24.9 mm 63.4 mm 64.55 – 64.20 mm 99.9 mm M18 x 1.5 340-804-005-028C
24.9 mm 26.5 mm 27.5 +0.15 -0.2 mm 63 mm M18 x 1.5 340-804-005-033C
18 mm 35 mm 36.1 ± 0.1 mm 63.5 mm M18 x 1.5 340-804-006-002C
33 mm 34 mm 35.1 ± 0.1 mm 62 mm M18 x 1.5 340-804-006-007C
33 mm 34 mm 35.1 ± 0.1 mm 64.5 mm M18 x 1.5 340-804-007-003C
27.5 mm 28.5 mm 29.6 ± 0.1 mm 70 mm M18 x 1.5 340-804-007-002A 1)
27.5 mm 28.5 mm 29.6 ± 0.1 mm 70 mm 3/4" – 16 UNF-2A 340-804-007-004C 1)
33 mm 34 mm 35.1 ± 0.1 mm 70 mm M18 x 1.5 340-804-007-011C 1)
18.2 mm 70.7 mm 71.8 ± 0.1 mm 79.7 mm M18 x 1.5 340-804-007-019C 2)
20 mm 39 mm 40.1 ± 0.1 mm 62 mm M18 x 1.5 340-804-007-020C 2)

1) Blade connector G = 6.3 x 0.8 mm; W = 6.3 x 0.8 mm
2) Blade connector G = 4.8 x 0.8 mm; W = 6.3 x 0.8 mm



Blocking oscillator sensor 4-pole, insulated return, 8 – 15 V, 12 mA
Voltage L1 L2 Article number
8 – 15 V 90.2 mm 133 mm 340-216-005-001C
8 – 15 V 63.2 mm 106 mm 340-216-005-002C
8 – 15 V 25 mm 74 mm A2C59513983
8 – 15 V 25 mm 78.3 mm 340-216-010-003C



Blocking oscillator sensor 4-pole, insulated return, 30 V, 14 mA
Voltage L1 L2 Article number
30 V 90.2 mm 133 mm 340-216-010-004C



Generator sensors 2-pole, 3-pole, insulated return (No-load voltage)
No-load voltage Type Thread Article number
19.3 V to 2 000 min -1 2-pole, M4 M22 x 1.5 340-808-001-002C
19.3 V to 2 000 min -1 3-pole, M4 M22 x 1.5 340-807-001-001C
19.3 V to 2 000 min -1 3-pole, 8-32 UNC-2A 7/8" – 18UNS-2B 340-807-001-003C



Hall-effect sensor 3-pole, insulated return
Voltage Article number
10.8 to 16 V 340-214-013-001Z

IP temperature connector

Sensors for electronically controlled safety functions are the eyes, ears and the antenna of a modern-day high-tech vehicle. Nothing escapes them – neither the smallest temperature deviations inside cooling systems, nor the monitoring of engine and gear oil temperature. Intelligent safety systems are inconceivable without them.

The temperature sensor is based on NTC-Technology (Negative Temperature Coefficient). It is a semi-conductor which changes the resistance value according to temperature deviation. This resistance value as an output value is much more an indication of a media’s medium temperature.

Suitable for Engine oil, Engine coolant, Diesel fuel
Range degrees Thread O-Ring Tightening Torque Article number
- 40 / + 150 °C M12 x 1.5 FMP (Shore A 70 ±5) 15 – 20 Nm A2C59900813 1)

1) Mating connector: Bosch, 1928403920, code 2



Suitable for Engine coolant
Range degrees Thread O-Ring Tightening Torque Article number
- 40 / + 140 °C M12 x 1.5 Copper 17 + 3 - 0 Nm A2C59515306 2)
- 40 / + 130 °C * M14 x 1.5 None Max 45 Nm A2C59515307 3)
- 40 / + 130 °C M12 x 1.5 EN AW – 1200 (AI 99) 20 Nm ± 10 % A2C59900816 4)

2) Mating connector: Delphi, DRW. 152624 way 2, code 1
3) Mating connector: Leopold Kostal receptacle housing (black) 2 pole code A, 09 4412 11,
Contact SLK 8 ELA, TAB 2 99 00 47295 0
4) Mating connector: Tyco, AMP925597-2 or AMP925596

* + 150 °C max 10 min

Engine oil temperature sensor

Sensor measuring the engine oil temperature.

Single-pole, common ground
Range degrees Voltage Length   Thread Article number
50 – 150 °C 6 – 24 V 29 mm 9 mm M14 x 1.5 323-801-004-002N
50 – 150 °C 6 – 24 V 29 mm 9 mm R 1/2 323-801-004-003D
50 – 150 °C 6 – 24 V 29 mm 9 mm 1/2" – 14 NPTF 323-801-004-007D
50 – 150 °C 6 – 24 V 29 mm 9 mm M14 x 1,5 323-801-004-039D
50 – 150 °C 6 – 24 V 15 mm 9 mm M16 x 1,5 323-801-012-001D
50 – 150 °C 6 – 24 V 15 mm 9 mm M14 x 1,5 323-801-012-002D
50 – 150 °C 6 – 24 V 15 mm 9 mm M18 x 1,5 323-801-012-003D
50 – 150 °C 6 – 24 V 29 mm 9 mm M16 x 1,5 323-801-004-012C
50 – 150 °C 6 – 24 V 22 mm 6.9 mm M10 x 1,5 323-801-010-001D
50 – 150 °C 6 – 24 V 29 mm 9 mm 1/4" – 18 NPTF 323-801-004-017D



Dual-pole, insulated return
Range degrees Voltage Length   Thread Article number
50 – 150 °C 6 – 24 V 29 mm 11 mm M14 x 1.5 323-805-003-001N
50 – 150 °C 6 – 24 V 29 mm 11 mm 1/4" – 18 NPTF 323-805-003-002N
50 – 150 °C 6 – 24 V 29 mm 11 mm 5/8" – 18 UNF-2A
with sealing cone
323-805-003-003N

Temperature coolant sensor

Sensor measuring the coolant temperature.

Single-pole, common ground
Range degrees Voltage Length   Thread Article number
40 – 120 °C 6 – 24 V 29 mm 9 mm M14 x 1.5 323-801-001-006N
40 – 120 °C 6 – 24 V 29 mm 9 mm 3/8" – 18 NPTF 323-801-001-007N
40 – 120 °C 6 – 24 V 29 mm 9 mm 5/8" – 18 UNF-3A 323-801-001-008N
40 – 120 °C 6 – 24 V 29 mm 9 mm 1/4" – 18 NPTF 323-801-001-009N
40 – 120 °C 6 – 24 V 29 mm 9 mm 1/2" – 14 NPTF 323-801-001-010N
40 – 120 °C 6 – 24 V 29 mm 9 mm M18 x 1,5 323-801-001-022N
40 – 120 °C 6 – 24 V 29 mm 9 mm M16 x 1,5 323-801-001-040N
40 – 120 °C 6 – 24 V 29 mm 9 mm M16 x 1,5 323-801-001-029N
40 – 120 °C 6 – 24 V 29 mm 9 mm R 3/8" DIN 2999, tapered 323-801-001-058C
40 – 120 °C 6 – 24 V 22 mm 8.5 mm 1/8" – 27 NPTF 323-801-005-001D
40 – 120 °C 6 – 24 V 10.5 mm 8.4 mm M10 x 1 tapered, short 323-801-017-001N



Dual-pole, insulated return
Range degrees Voltage Length   Thread Article number
40 – 120 °C 6 – 24 V 24 mm 11 mm 5/8" – 18 UNF-2A 323-805-001-002C
40 – 120 °C 6 – 24 V 29 mm 11 mm 1/2" – 14 NPTF 323-805-001-004N
40 – 120 °C 6 – 24 V 29 mm 11 mm 3/8" – 18 Dryseal
NPTF
323-805-001-005N
40 – 120 °C 6 – 24 V 29 mm 9 mm M18 x 1,5 323-805-001-015N

Pyrometer sensor

Pyrometer sensor for temperature measurement.

Thermocouple element – compatible only with VDO
Range Terminals Article number
100 – 900° C
250 – 1650° F
Red = Negative
Yellow = Positive
N03-320-264



Connecting cable
Range Terminals Article number
6 m White = Negative
Blue = Positive
N03-320-268



Threaded bushing for welding to manifold
Article number
N03-320-266

Ammeter sensor

Reliable marine ammeter sensor.

Range amp Voltage Input Article number
- 60 / + 60 A 12 / 24 V 60 mV A2C59514043
- 150 / + 150 A 12 / 24 V 60 mV A2C59514043

Dealer Search / Contact us

Locate the right contact, dealer or service partner worldwide

Contact

Downloads

Download brochures, data sheets, user manuals or catalogues:

Tolling Belgium Fix Installation

Truck Tolling in Belgium is coming 1st of April 2016. Be prepared now and buy a fix installation!

Go to page

© Continental Automotive Trading UK Ltd. 2016

VDO - A Trademark of the Continental Corporation
