Navigation Instruments

Precise instrumentation to safely steer your boat

The multifunctional gauge with segment display indicates the Speed over Ground and includes a programmable speed alarm.

The multifunctional gauge with segment display indicates the Speed over Ground and includes a programmable speed alarm.

The multifunctional gauge with segment display indicates the Speed over Ground and includes a programmable speed alarm.
The ViewLine rudder angle gauge for wheel-controlled yachts displays the current rudder position at all times.
The ViewLine trim gauge provides information about the position of the engine in relation to the boat‘s stern.
On boats with twin engine installations, the ViewLine synchronizer helps to ensure correct synchronized running of both Units.
The ViewLine depth indicator measures water depth. The integrated alarm ensures safe passage through shallow waters.

Reliable navigation instruments ensure secure and accident-free maneuvers even in difficult situations such as narrow waterways. The VDO marine navigation instruments show precisely and clearly safety-related data and more.

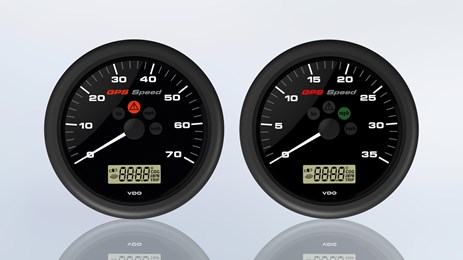

GPS speed gauge

This multifunctional gauge with segment display is intended for use in the marine market in open boats. Based on the ViewLine housing concept, the cluster provides an ideal IP protection class, a modern appearance and high quality standards.

  • Embedded GPS antenna
  • Robust and flexible design for versatile applications
  • CAN capability (NMEA 2000)
  • Pointer for analog indication of Speed over Ground (SOG)
  • Programmable speed alarm
  • Fixed segment LC display
  • Flush mount possibility
  • Front side protection rating IP67
  • Compass for Course over Ground (COG)
  • Clock
  • 110 mm installation diameter
  • 126 mm outer diameter
  • 50 mm installation depth

Range
knots / kmh / mph

Voltage Operating temperature Article number
Ø 110 mm
0 – 12 knots / kmh / mph 8.5 – 16 V - 20° / + 85 °C A2C59501987
0 – 35 knots / kmh / mph 8.5 – 16 V - 20° / + 85 °C A2C59501782
0 – 70 knots / kmh / mph 8.5 – 16 V - 20° / + 85 °C A2C59501781

Rudder angle

The ViewLine rudder angle gauge for wheel-controlled yachts displays the current rudder position at all times. It is an important gauge for accident-free maneuvres in narrow waterways.

  • 52 mm range: 40° Port to 40° Starboard
  • 85 mm range: 45° Port to 45° Starboard
  • 8 pole Tyco / Hirschmann bush housing
  • Operating voltage 8–32 V
  • Current consumption < 150 mA
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 or 85 mm installation diameter50 mm installation depth
Range angle Voltage Color Input ohm Article number
Ø 52 mm
- 40° / + 40° 8 – 32 V Black
White
3 – 180 W A2C59514154
A2C59514230
Ø 85 mm
- 45° / + 45° 8 – 32 V Black
White
3 – 180 W A2C59512410
A2C59512411

Trim gauge

The ViewLine trim gauge provides information about the position of the engine in relation to the boat‘s stern. In this way the skipper always knows whether the drive is in the raised or lowered position. He can also optimize the boat‘s trim.

  • 8 pole Tyco / Hirschmann MQS plug
  • + / – 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 150 mA, with integrated warning light (LED)
  • Input signal: standard Ω values
  • 90° display angle
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
Range Voltage Color Input ohm Article number
Ø 52 mm
up / down 8 – 32 V Black
White
167 – 10 W A2C59514180
A2C59514244

Synchronizer

On pleasure boats with twin engine installations, the ViewLine synchronizer is an indispensable aid to ensuring correct synchronized running of both units.

  • 8 and 14 pole Tyco / Hirschmann bush housing< 150 mA
  • Operating voltage 8–32 V
  • Accuracy +/- 2.5 %
  • Current consumption 150 mA
  • 2nd frequency input
  • Connection for external alerts (option)
  • Number of pulses programmable via dip switch or PC software (ViewLine programming tool)
  • Anti-fog double lens
  • Front side protection rating IP67
  • 85 mm installation diameter
  • 50 mm installation depth
Range rpm Voltage Color Input Article number
Ø 85 mm
- 500 / + 500 rpm 8 – 32 V Black
White
W, 1, Ind A2C59512402
A2C59512403

Depth gauge

The ViewLine depth indicator measures water depth. The integrated alarm, which can be configured to the user’s specification, ensures safe passage through shallow waters.

  • 8 and 14 pole Tyco / Hirschmann bush housing
  • Operating voltage 8 – 32 V
  • Accuracy + / – 2.5 % (depending on the nature of the bottom and water quality)
  • Current consumption < 150 mA, with integrated warning light (LED)
  • Warning light for configurable shallow water alarm
  • NMEA input for active NMEA 0183 depth sensor
  • Display with various functions, e. g., water temperature, depth, shallow water alarm, time, voltage, etc.
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 85 mm installation diameter
  • 50mm installation depth
Range meter Voltage Color Input Article number
Ø 85 mm
0 – 30 m 8 – 32 V Black
White
NMEA 0183 A2C59514247
A2C59514250
